The Intelligent Condensate Removal Pump Series | Available in: UK & EU only
THE NEXT GENERATION IN CONDENSATE REMOVAL IS HERE
The V2 Range marks the latest evolution of BlueDiamond®’s trusted pump technology, engineered to deliver enhanced reliability, precision, and energy efficiency. Built around our newly refined pumping technology, this next-generation pump series features a lighter, more compact design tailored for high-demand HVAC applications.
At the core of each V2 pump is an intelligent control board that enables real-time monitoring and adaptive condensate management, ensuring optimal performance across variable conditions. The integration of BlueDiamond®’s proprietary CondenSense™ technology allows the pump to continuously assess condensate levels and automatically adjust its operation, delivering accurate output while minimising energy consumption and mechanical stress. All pumps in the range are valveless with filter-free architecture, significantly reducing routine maintenance and improving long-term dependability in mission-critical environments.
QUIET BY DESIGN
The V2 Series is engineered to deliver powerful performance with remarkably low noise output. Each unit features three integrated anti-vibration elastomeric feet, strategically designed to isolate the pump from its mounting surface and greatly reduce transmitted surface vibration.
To further enhance acoustic awareness, the V2 Series incorporates variable flow control with soft-start sequencing. Rather than starting at full output, the pump gently ramps up to the required operating level, eliminating unnecessary noise during start-up.
Thanks to this combination of smart engineering and advanced vibration management, the V2 Series can achieve sound levels as low as 19 dBA, making it ideal for installations where quiet operation is essential.
DIGITAL MOTOR
The V2 Series redefines motor technology with its advanced brushless design, offering exceptional performance, reliability, and energy efficiency. By eliminating carbon brushes, it minimizes wear, extends lifespan, and reduces maintenance.
Durability is built in: ball-raced bearings ensure smooth operation, a reinforced stainless-steel shaft resists corrosion, and conformal coating protects wiring from environmental damage. Performance is consistent, with reliable torque across all speeds and built-in speed control for automatic flow adjustments. Paired with CondenSense™ sensors, the V2 Series provides intelligent, real-time monitoring, optimizing efficiency and cutting energy and maintenance costs.
The result is a resilient, high-performance motor system engineered for even the most demanding applications.
CONDENSENSE™ COMPATIBLE
CondenSense™ with CS2 microchip technology transforms condensate management through intelligent detection, automatic flow adjustment, and adaptive performance. Its filter free design simplifies installation and maintenance, while the compact form factor fits effortlessly into space limited environments.
Engineered for precision, the CondenSense™ reservoir features more than 200 dynamic touchpoints that communicate with the CS2 chip for accurate liquid detection. A patented smaller meniscus reduces false triggers from debris, and the detachable sensor allows quick servicing without full disconnection.
By ensuring pumps run only when needed and at the correct output, CondenSense™ minimises cycling for quieter, cleaner, and more efficient operation. The result is a reliable, low maintenance sensing system designed for next generation pumping solutions.
DYNAMIC MONITORING
Dynamic Monitoring, powered by the advanced CS2 microchip, delivers real-time performance analytics for smarter pump management. A volt-free alarm, rear LED indicators, and integrated audio alerts provide instant status updates, enabling rapid issue detection.
The system follows a clear three-stage sequence: solid green for normal operation; flashing green while the pump removes condensate; and flashing red with audio alert for faults. Even during errors, the pump continues running, maintaining reliability and performance.
The result is an intelligent, visible, and reassuring monitoring solution that simplifies servicing and minimises downtime.
PLUG & PLAY
The V2 Series delivers true plug and play convenience with a pre fitted power lead that simplifies installation from the start. Cable thickness and profiles are intentionally small, allowing easy routing in tight spaces and creating a clean, unobtrusive setup. The power lead is securely screwed into place so it cannot loosen during operation or servicing, ensuring consistent and reliable performance.
For additional simplicity, the CondenSense™ reservoir lead is shorter, eliminating the need for re-wiring making maintenance, swapout, or relocation fast and straightforward. The result is a plug and play system designed for quick installation, dependable connections, and effortless servicing.
UPDATED ARCHITECTURE
Updated Architecture gives the V2 Series a streamlined body with integrated elastomeric feet, reducing vibration and noise for smoother operation. The improved plug-and-play system features slimmer, space-saving cables, making installation faster, cleaner, and more efficient.

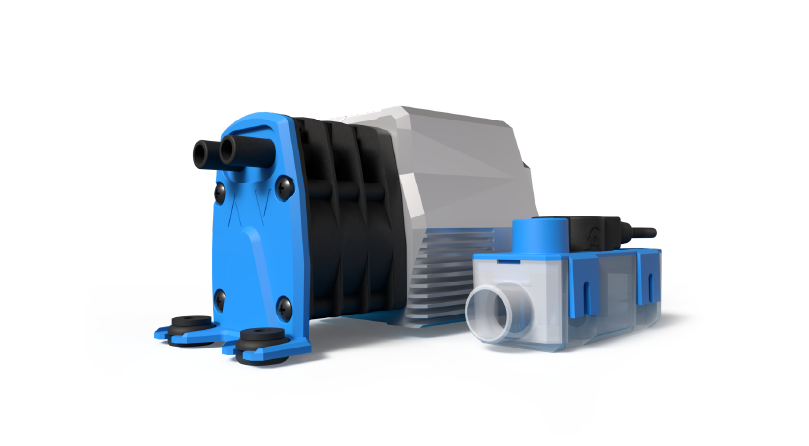

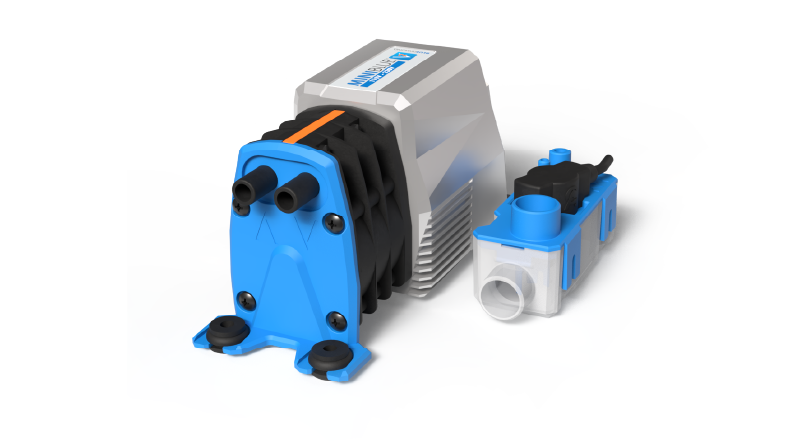

All pumps MiniBlue, MaxiBlue, and MegaBlue share a uniform design, reinforcing product identity and simplifying specification and installation.
The result is a strong, stable, and simple design that is easier to install, quieter in use, and highly reliable. In the case of the MegaBlue, there is a significant size reduction.

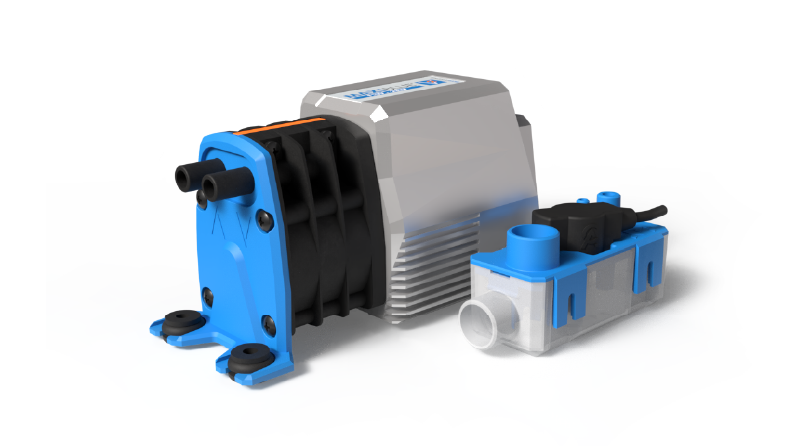

V2 series
PRECISION. INTELLIGENCE. EFFICIENCY.
| Max Flow: | 8 L/MIN (3.7 G/HOUR) |
| Max Head: | 8 M (23 FT) |
| Max Lift: | 5 M (16.5FT) |
| Sound Range: | 17-21 dB(A) |
| Unit: | 8.0 (25,000 BTU) |
Available: UK & EU
PERFORMANCE. INTELLIGENCE. RELIABILITY.
| Max Flow: | 14 L/MIN (3.7 G/HOUR) |
| Max Head: | 8 M (23 FT) |
| Max Lift: | 8 M (16.5FT) |
| Sound Range: | 17-21 dB(A) |
| Unit: | 14 KW (48,000 BTU) |
Available: UK & EU
PRESERVING THE SAME WARRANTY
While the new V2 pump series incorporates the latest advancements in performance and efficiency, it continues to be supported by the same trusted three-year warranty. This commitment ensures customers not only benefit from cutting-edge technology, but also enjoy long-term peace of mind as an engineer, knowing reliability and durability remain at the core of the design. By preserving the established warranty, the pump delivers innovation without compromise, backed by the reassurance of proven dependability – ideal for the ultimate HVAC professional.
