Condensate Removal Pump | Available in: UK & EU
V2 SERIES | BUILT ON A LEGACY. POWERED BY INNOVATION.
PRECISION. Intelligence. EFFICIENCY.

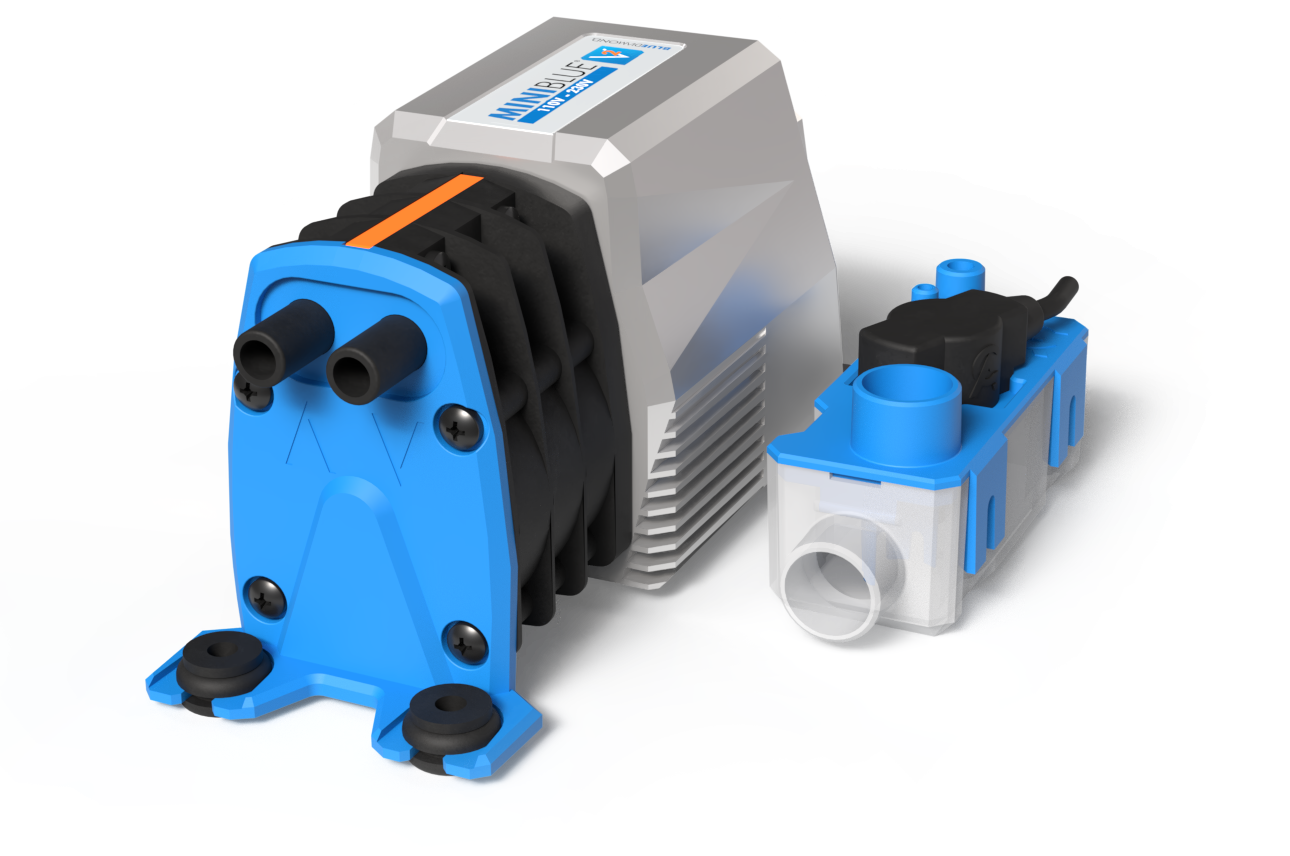

The MiniBlue® V2 is one of the most compact and efficient performers in the BlueDiamond® V2 Series, purpose-built for reliable condensate removal in space-limited installations. Capable of delivering up to 8 L/hour, it combines powerful performance with a remarkably small footprint, making it ideal for modern, high-efficiency systems where size and simplicity matter. MiniBlue® V2 is advanced with CondenSense™ technology featuring the intelligent CS2 microchip. This innovation enables direct communication between the reservoir and pump, allowing real-time monitoring and automatic flow adjustment.
The result is whisper-quiet, energy-efficient operation that adapts seamlessly to demand while minimising wear and energy use. Its filter-free, lightweight design reduces maintenance requirements and simplifies installation, offering long-term dependability with minimal servicing. Built with the same refined architecture as the wider V2 Series, the MiniBlue® V2 benefits from integrated elastomeric feet to reduce vibration and noise, as well as streamlined plug-and-play connections for faster, cleaner setup.
Key Features
• Soft-start control with variable operational volume (21 dB(A) Max).
• Newly refined and enhanced Rotary Diaphragm technology.
• Real-time monitoring and state of the art alarm configuration.
• Automatic flow adjustment.
• Valveless, clog-resistant, filter-free design.
• CondenSense™ technology compatible.
• Energy-efficient operation.
• Extended service life.
Application
• Air conditioning systems up to 8KW.
• Mini-split and cassette systems.
• Mid-range fan coil applications.
• High humidity environments.
• Ideal for pumping and preventing bio-films.
PurchaseD With
• CondenSense™ Reservoir (Integrated CS2 Microchip) – UK & EU (X88-509)
*Pump comes with volt-free, audio and LED alarm package as standard on all models.
Performance
Max Flow:
8 L/Hour
Max Head:
8 Metres
Max Lift:
5 Metres
Volume (Low flow):
19 dB(A)
Volume (High flow):
21 dB(A)
Alarm Type:
Volt free, Audio & LED
UNIT
Max A/C KW:
8 KW
Consumption
Voltage:
115-230V
Frequency:
50/60Hz
Draw (A):
0.03 (115V), 0.06 (240V)
Power (W):
5.5W
Power (VA):
5.7VA
Power Factor:
0.96
IP Rating:
IP4X
Sizing
Dimensions:
148 x 57 x 74mm
Weight:
640g
Inlet:
8mm Straight
Outlet:
8mm Straight
Alarm Lead:
2 Metres
Reservoir:
102 x 31 x 38mm
Performance
Max Flow:
3.7 G/Hour
Max Head:
26 Feet
Max Lift:
26 Feet
Volume (Low flow):
19 dB(A)
Volume (High flow):
21 dB(A)
Alarm Type:
Volt free, Audio & LED
UNIT
Max A/C BTU:
48000 BTU
Consumption
Voltage:
115-230V
Frequency:
50/60Hz
Draw (A):
0.13 (115V), 0.06 (230V)
Power (W):
5.5W
Power (VA):
5.7VA
Power Factor:
0.96
IP Rating:
IP4X
Sizing
Dimensions:
5.8 x 2.2 x 2.9 Inches
Weight:
22.5 oz
Inlet:
1/4 Inch Straight
Outlet:
1/4 Inch Straight
Alarm Lead:
6.5 Feet
Reservoir:
4.0 x 1.2 x 1.5 Inches

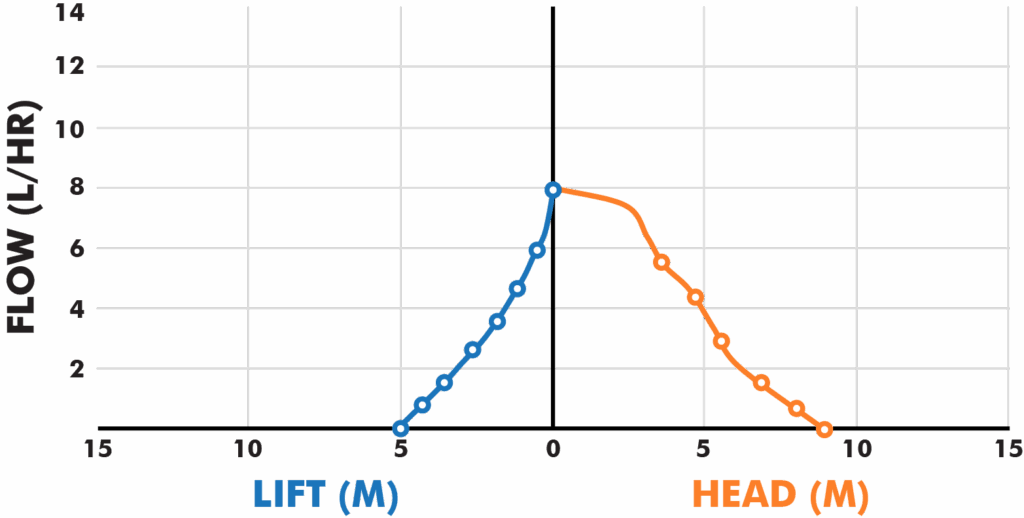

TESTED performance
Rigorously tested by our in-house R&D team, every MiniBlue V2 pump undergoes thorough performance and endurance testing before leaving our manufacturing facilities, ensuring consistent, reliable operation in the field.
Regularly trusted by engineers worldwide, the Miniblue V2 has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.

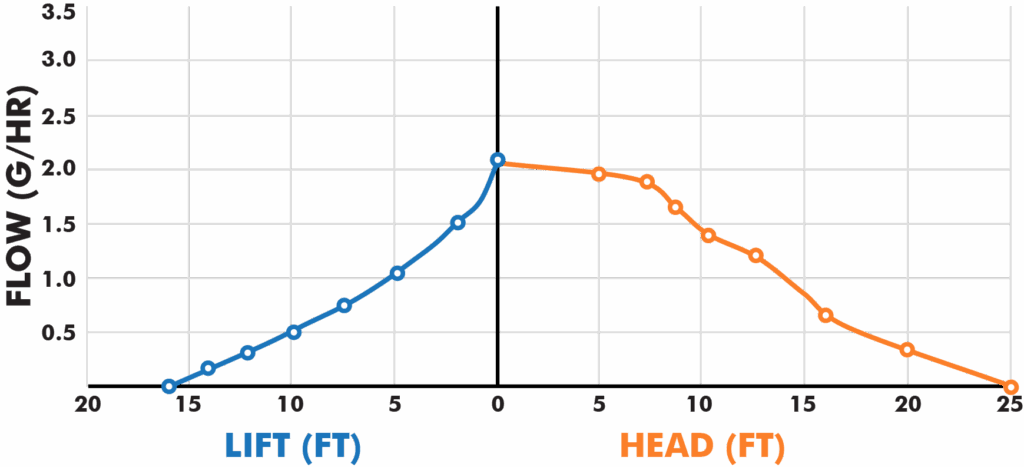

TESTED performance
Rigorously tested by our in-house R&D team, every MiniBlue V2 pump undergoes thorough performance and endurance testing before leaving our manufacturing facilities, ensuring consistent, reliable operation in the field.
Regularly trusted by engineers worldwide, the Miniblue V2 has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.
Discharge Pipe
Vertical (V):
Horizontal (H):
8 Metres
0 Metres
7 Metres
3 Metres
6 Metres
6 Metres
5 Metres
9 Metres
4 Metres
12 Metres
3 Metres
15 Metres
2 Metres
18 Metres
1 Metres
21 Metres
Unit Size
Max KW Unit:
8KW
Unit Type:
Mini split
Note: The MiniBlue® V2 can be mounted in any orientation up to 8 Metres away from the air-conditioning unit. We recommend mounting the pump inside the ceiling cavity or ducting kit for a discreet fit.
Discharge Pipe
Vertical (V):
Horizontal (H):
25 Feet
0 Feet
22 Feet
9 Feet
20 Feet
20 Feet
16 Feet
30 Feet
13 Feet
40 Feet
9 Feet
50 Feet
6 Feet
60 Feet
3 Feet
70 Feet
Unit Size
Max KW Unit:
25000 BTU
Unit Type:
Mini split
Note: The MiniBlue® V2 can be mounted in any orientation up to 25 Feet away from the air-conditioning unit. We recommend mounting the pump inside the ceiling cavity or ducting kit for a discreet fit.
| Pump purchasing options | Part No. | Available in |
|---|---|---|
| MiniBLUE® V2 + CONDENSENSE™ RESERVOIR | X88-509 |  UK, EU, ROW |
| MiniBLUE® V2 + CONDENSENSE™ RESERVOIR | Not available |  Americas |
NEW Alarm SYSTEM
The FSA (Fail Safe Alarm) and HLA (High Level Audio) functions have been combined into a single, enhanced alarm system package. V2 models now incorporate both features along with an LED indicator as standard, delivering a more streamlined and comprehensive solution.
This mark indicates that our motors comply with UK regulations and meet the required health, safety, and environmental protection standards for products sold in Great Britain (England, Scotland, and Wales). For details, visit our compliance website here.
This mark signifies that our motors comply with CE requirements, confirming they meet essential health, safety, and environmental protection standards for products sold within the European Economic Area (EEA). For more information, visit our compliance website here.
Plenum spaces circulate air in buildings, often for HVAC systems. “Plenum-rated” materials limit smoke and toxic fumes in a fire, helping prevent their spread through the building. Visit compliance website here.
This mark indicates that our motors have been tested and meets safety standards in both the United States (UR) and Canada (cUR). Visit compliance website here.
MINIBLUE® V2 | NEW FEATURES
UPGRADED EFFICIENCY
The MiniBlue V2 redefines motor technology with its advanced brushless design, offering exceptional performance, reliability, and energy efficiency. By eliminating carbon brushes, it minimizes wear, extends lifespan, and reduces maintenance.
Durability is built in: ball-raced bearings ensure smooth operation, a reinforced stainless-steel shaft resists corrosion, and conformal coating protects wiring from environmental damage. Performance is consistent, with reliable torque across all speeds and built-in speed control for automatic flow adjustments. Paired with CondenSense™ sensors, the MiniBlue V2 provides intelligent, real-time monitoring, optimizing efficiency and cutting energy and maintenance costs.
CONDENSENSE™ COMPATIBLE
CondenSense™ with CS2 microchip technology transforms condensate management through intelligent detection and adaptive performance. Filter-free design simplifies installation and maintenance, while its compact size fits space-limited environments.
Engineered for precision over 200 dynamic touchpoints communicate with the CS2 chip for accurate liquid detection, a patented smaller meniscus reduces false triggers from debris and the detachable sensor enables quick servicing without full disconnection.
DYNAMIC MONITORING
Dynamic Monitoring, powered by the advanced CS2 microchip, delivers real-time performance analytics for smarter pump management. A volt-free alarm, rear LED indicators, and integrated audio alerts provide instant status updates, enabling rapid issue detection.
The system follows a clear three-stage sequence: solid green for normal operation; flashing green while the pump removes condensate and flashing red with audio alert for faults. Even during errors, the pump continues running, maintaining reliability and performance.
NEW ARCHITECTURE
Updated Architecture gives the MiniBlue V2 a streamlined body with integrated elastomeric feet, reducing vibration and noise for smoother operation. The improved plug-and-play system features slimmer, space-saving cables, making installation faster, cleaner, and more efficient.
All pumps MiniBlue, MaxiBlue, and MegaBlue share a uniform design, reinforcing product identity and simplifying specification and installation.
V2 SERIES - PREVIEW TRAILER
VALVELESS TECHNOLOGY
Newly refined and enhanced Rotary diaphragm technology. The V2 series uses a flexible rotating diaphragm to move fluids, removing the need for valves. Its anti-clogging design reduces wear and maintenance, while improving reliability—especially when dealing with debris-laden condensate. The exclusive technology delivers a consistent, powerful flow and is fully self-priming, making it ideal for high-lift applications.
