PUMP COMPARISON TABLE

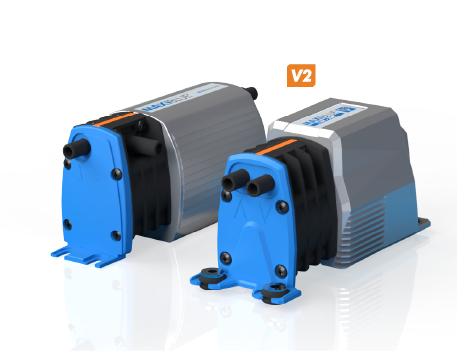

See how the new V2 Pump Series compares to current legacy pump models
The new V2 Series from BlueDiamond® represents a significant advancement over the company’s legacy models, incorporating enhanced performance architecture, streamlined system integration, and next-generation diagnostic capabilities. Engineered for greater efficiency and reliability the V2 Series introduces modernised components and intelligent automation features that provide measurable operational improvements. The following table will outline a detailed, side-by-side comparison to clearly illustrate the new innovations introduced in the V2 Series.
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Performance
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Performance - Flow Rate
8L/Hour
8L/Hour
14L/Hour
14L/Hour
50L/Hour
50L/Hour
Performance - Lift Capacity
8m
8m
8m
8m
20m
20m
Performance - Head
5m
5m
8m
8m
7m
7m
Performance - Sound Level/Range
21dB(A)
19–21dB(A)
21dB(A)
19–21dB(A)
21dB(A)
19–21dB(A)
Performance - Air Conditioning Unit Size
8.0Kw
8.0Kw
14.0Kw
14.0Kw
50.0Kw
50.0Kw
Pumping Technology
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Pumping Technology - Temperature Sensor
Sensing
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Sensing - Temperature Sensor
Sensing - MaxiBlue Reservoir (Thermistor)
Sensing - MegaBlue Reservoir (Thermistor)
Sensing - DrainStik™ (Thermistor)
CondenSense™ Reservoir
Pump & Sensor Features
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Pump & Sensor Features - Automatic Self-Priming
Pump & Sensor Features - Run-Dry
Pump & Sensor Features - 360° Mounting
Pump & Sensor Features - Pump Condensate Liquid
Pump & Sensor Features - Pump Bio-film
Pump & Sensor Features - Pump Dirt & Debris
Pump & Sensor Features - Filter-Free
Pump & Sensor Features - Low Maintenance
Pump & Sensor Features - Valveless Design
Pump & Sensor Features - No Wireless Connections
Pump & Sensor Features - Volt Free Relay
Pump & Sensor Features - LED Indicator
Pump & Sensor Features - Audio Alarm
Pump & Sensor Features - CS2 Microchip
Pump & Sensor Features - BLDC (Brushless) Motor
Pump & Sensor Features - Reinforced Motor Shaft
Pump & Sensor Features - Variable Flow Speed
Pump & Sensor Features - Vibration Isolation feet
Pump & Sensor Features - Soft Start Sequencing
Pump & Sensor Features - Automatic Flow Adjustment
Pump & Sensor Features - Self-Learning Intelligence (remembers last 100 cycles)
Pump & Sensor Features - CondenSense Integration
Pump & Sensor Features - Dynamic Condensate Monitoring
Pump & Sensor Features - Adaptive Condensate Detection
Pump & Sensor Features - 250+ Touchpoint Settings
Pump & Sensor Features - Warranty
3 Years
3+ Years
3 Years
3+ Years
3 Years
3+ Years
Pump & Sensor Features - Registerable Warranty
Pump & Sensor Features - Installation Video Guides
Specifications
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Specifications - Connector Inlet
8mm Straight
8mm Straight
8mm Straight
8mm Straight
8mm Straight
8mm Straight
Specifications - Connector Outlet
8mm Straight
8mm Straight
8mm Straight
8mm Straight
8mm Straight
8mm Straight
Specifications - 2m Power Lead
Specifications - 0.5m Alarm Cable
Specifications - 2m Alarm Cable
Specifications - Detachable Mains Cable (swap-out purposes)
Specifications - Swap-Out Sensor (Shortened sensor wire)
Specifications - ‘L’-Shape Inlet Configuration
Specifications - Forward-Facing Inlet/Outlet
Specifications - DIN Plug Connection
Specifications - Aux Connection
Specifications - Integrated Rubber Feet
Specifications - Plug 'n' Play Set-Up (Pre-plugged cables)
Specifications - Weight
644g
640g
663g
640g
976g
640g
Specifications - Dimensions (mm)
138 x 58 x 67mm
148 x 57 x 74mm
157 x 58 x 67mm
148 x 57 x 74mm
248 x 58 x 68mm
148 x 57 x 74mm
Specifications - Voltage
240V
115-230V (Dual)
240V
115-230V (Dual)
240V
115-230V (Dual)
Specifications - Box Quantity
25
28
25
28
10
28
Approvals (UK/EU)
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Approvals (UK/EU) - UK CA
Approvals (UK/EU) - CE
Approvals (UK/EU) - ATEX
(Coming soon)
(Coming soon)
(Coming soon)
Accessory Compatibility
MINIBLUE X87
MINIBLUE X88
MAXIBLUE X87
MAXIBLUE X88
MEGABLUE X87
MEGABLUE X88
Accessory Compatibility - Ducting Kit
Accessory Compatibility - Mounting Feet
(Integrated)
(Integrated)1
(Integrated)
Accessory Compatibility - MultiTank – Legacy
Accessory Compatibility - MultiTank V2
Accessory Compatibility - 2m Extension Cable
Accessory Compatibility - 2m Aux Extention Cable
