MOUNTING & ACCESSORIES
BlueDiamond® Solution for HVACR engineers
DISCREET & SIMPLIFIED INSTALLATION OPTIONS FOR HVACR PRODUCTS
Mounting options and accessories are essential for the reliable and accurate integration of condensate removal pumps and sensors in HVACR systems. From ducting kits and reservoir clips to the MultiTank and mounting feet, these components ensure secure placement and proper alignment—even in tight or challenging installation spaces. By enabling precise sensor positioning and minimising external interference, they help maintain consistent system performance, streamline installation, and enhance the overall efficiency and reliability of HVACR installations.
WHY ARE Mounting Options IMPORTANT?
Simplifying installation: Easy access to components like the sensors, pump, and tubing is critical for reducing installation time and minimising disruption during set-up or HVAC maintenance.
Discretion: Concealing pumps, reservoirs, and tubing using integrated mounting components helps eliminate visual clutter and supports a clean, cohesive appearance. This is especially important in visible or customer-facing areas, where maintaining an unobtrusive and professional aesthetic is essential.
Multi-unit installations: In environments with multiple air conditioning systems, centralised condensate management simplifies installation and maintenance. Using a shared tank or drainage reservoir to connect multiple fan coil units reduces the number of individual pumps required, saves space, and streamlines servicing—offering greater flexibility and efficiency in complex HVACR setups.
Further sound reduction: While HVACR systems inherently generate operational sound, incorporating mounting solutions that dampen vibrations made by other components can significantly reduce sound levels further. This not only enhances end-users comfort (particularly in noise-sensitive areas)—but also helps extend pump lifespan by minimising mechanical stress.
Common CHALLENGES for engineers
Limited space: Installing air conditioning units in tight spaces with no room for mounting solutions limits engineers installation which can result in a complicated set-up.
Poor access for pump maintenance: If air conditioning systems, along with pumps are installed in hard-to-reach locations, such as ceilings, routine maintenance becomes lengthy for engineers. Mounting them in an accessible area that remain discreet is key for quicker, and easier access for efficient servicing.
Component updates: Updates to pumps, such as changes in sensor type or pump architecture can void pre-existing mounting options. As a result, what should be a simple replacement can require dismantling the entire unit, leading to delays, added costs, and unnecessary complexity.
OUR MOST EFFECTIVE solutions
MULTITANK
| Compatibility: | MaxiBlue, MegaBlue |
| Sensor type: | Thermistor Sensing |
| Dimension: | 355 x 127 x 105mm (13.9 x5 x 4.1″) |
| Tank Capacity: | 1.5 Litres ( 0.4 Gallons) |
| Ideal for: | Multi-system installation |
Available in UK, EU & USA
| Max Flow: | 14 L/MIN (3.7 G/HOUR) |
| Max Head: | 8 M (23 FT) |
| Max Lift: | 8 M (16.5FT) |
| Noise: | 21 dB(A) |
| Unit: | 8.0 – 14 KW (48000 BTU) |

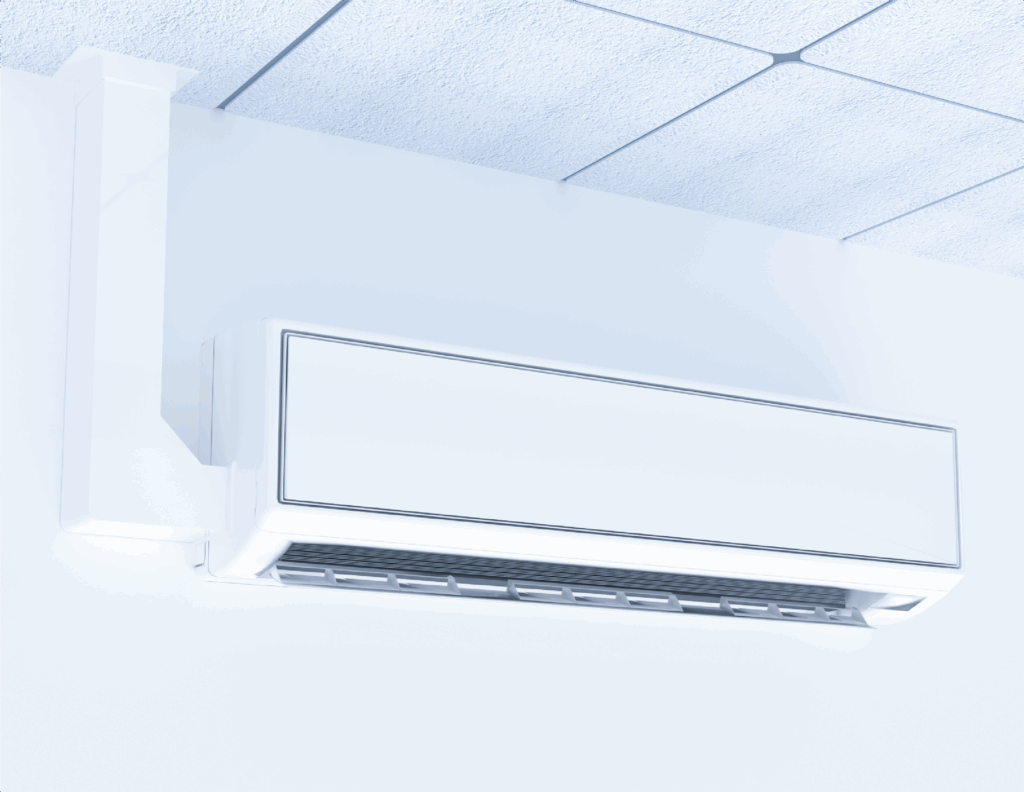

DUCTING KIT
| Compatibility: | MicroBlue, MiniBlue R |
| Sensor fit: | MicroBlue Reservoir |
| Dimension: | 930x 130 x 70mm |
| Tank Capacity: | 1.5 Litres ( 0.4 Gallons) |
| Ideal for: | Discreetly hides pump, cables and tubing. |
Available in UK & EU
SLIM FASCIA KIT
| Compatibility: | MicroBlue |
| Sensor fit: | MicroBlue Reservoir |
| Dimension: | 11.8 x 3 x 2.7″ |
| Ideal for: | Discreetly hide pump, cables and tubing |
Available in USA only
| Max Flow: | 14 L/MIN (3.7 G/HOUR) |
| Max Head: | 8 M (23 FT) |
| Max Lift: | 8 M (16.5FT) |
| Noise: | 21 dB(A) |
| Unit: | 8.0 – 14 KW (48000 BTU) |
RESERVOIR CLIP
| Compatibility: | MicroBlue Reservoir |
| Sensor fit: | MicroBlue Reservoir |
| Dimension: | 60 x 50 x 2mm (2.3 x 1.96 x 0.08″) |
| Ideal for: | Retro-fitting reservoir to any ducting elbow or flat wall surface |
Available in UK, EU & USA
MOUNTING FEET
| Compatibility: | MiniBlue, MaxiBlue, MegaBlue |
| Accessory fit: | MultiTank |
| Dimension: | 38 x 55 x 20mm (1.49 x 2.1 x 0.78″) |
| Ideal for: | Reducing sound and vibration levels with selected pump models |
Available in UK, EU & USA
