ROBUST, INDUSTRIAL LEVEL CONDENSATE REMOVAL PUMP, FOR LARGE SCALE CONDENSATE MANAGEMENT SYSTEMS
The MegaBlue® condensate pump by BlueDiamond® is a powerful, high-capacity solution engineered for large commercial spaces and multi-system HVAC installations. The MegaBlue features our patent Rotary Diaphragm Technology, delivering exceptional reliability and minimal maintenance. Its self-priming, valveless capability easily handles debris-laden or acidic condensate, making it ideal for demanding environments. As the largest and most robust pump in the BlueDiamond® range, the MegaBlue® offers unmatched performance, durability, and efficiency in condensate removal.
Key Features
• Low volume in operation – 23dB(A)
• Self-priming activation, no need for siphoning devices
• Unique patented Rotary Diaphragm Technology
• Built for large scale commercial use
• Our most powerful condensate pump from the range
• Forward facing spouts for simple reservoir and drainage outlet connection
Application
• Ideal for warehouses and commercial environments
• Multiple A/C systems up to 14.0 – 50.0 KW
PurchaseD With
• Reservoir (Thermistor sensing technology)- UK, EU, USA
• Temperature Sensor (Thermistor sensing technology) – UK/EU only
• DrainStik Sensor (Thermistor sensing technology) – UK/EU only
• Available with Fail Safe Alarm (FSA)
• See pump specifications for purchase code options
Performance
Max Flow:
50 L/Hour
Max Head:
20 Metres
Max Lift:
7 Metres
Volume:
23 dB(A)
UNIT
Max A/C KW:
14.0 - 50.0 KW
Consumption
Voltage:
110 -240V
Frequency:
50Hz
Draw (A):
0.072A
Power (W):
12W
Power (VA):
17.3VA
Power Factor:
0.69
IP Rating:
IPX4
Sizing
Dimensions:
248 x 58 x 68mm
Weight:
976g
Inlet:
8mm Straight
Outlet:
8mm Straight
Alarm Lead:
2 Metres
Reservoir:
70 x 60 x 40mm
Performance
Max Flow:
13.2 G/Hour
Max Head:
66.5 Feet
Max Lift:
23 Feet
Volume:
23 dB(A)
UNIT
Max A/C BTU:
48000 - 170000 BTU
Consumption
Voltage:
110 - 240V
Frequency:
50Hz
Draw (A):
0.15A
Power (W):
12W
Power (VA):
17.25VA
Power Factor:
0.69
IP Rating:
IPX4
Sizing
Dimensions:
5.43 x 2.28 x 2.65 Inches
Weight:
34.4 oz
Inlet:
1/4 Inch Straight
Outlet:
1/4 Inch Straight
Alarm Lead:
6.5 Feet
Reservoir:
3.5 x 1.5 x 1.2 Inches
TESTED performance
Rigorously tested by our in-house R&D team, every MegaBlue pump undergoes thorough performance and endurance testing before leaving our manufacturing facilities, ensuring consistent, reliable operation in the field.
Regularly trusted by engineers worldwide, the Megablue has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.
tested performance
Rigorously tested by our in-house R&D team, every MegaBlue pump undergoes thorough performance and endurance testing before leaving our manufacturing facilities, ensuring consistent, reliable operation in the field.
Regularly trusted by engineers worldwide, the Megablue has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.
Discharge Pipe
Vertical (V):
Horizontal (H):
20 Metres
0 Metres
15 Metres
15 Metres
10 Metres
30 Metres
5 Metres
45 Metres
0 Metres
60 Metres
Unit Size
Max KW Unit:
50 KW
Unit Type:
Cassette & Fan coil
Note: The MegaBlue® can be mounted in any orientation up to 7 Metres away from the air-conditioning unit.
Discharge Pipe
Vertical (V):
Horizontal (H):
23 Feet
0 Feet
22 Feet
50 Feet
9 Feet
100 Feet
6 Feet
150 Feet
3 Feet
200 Feet
Unit Size
Max KW Unit:
24000 BTU
Unit Type:
Cassette & Fan Coil
Note: The MegaBlue® can be mounted in any orientation up to 23 Feet away from the air-conditioning unit.
| Pump purchasing options | Part No. | Available in | MEGABLUE® + RESERVOIR SENSOR | X87-813 |  UK, EU, ROW |
|---|---|---|
| MEGABLUE® + TEMPERATURE SENSOR | X87-814 | UK, EU, ROW |
| MEGABLUE® + DRAINSTIK® SENSOR | X87-820 | UK, EU, ROW |
| MEGABLUE® + TEMPERATURE SENSOR (FSA) (110V - 230V) | X87-835 |  AMERICAS |
Alarm explanation
FSA– Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
This mark indicates that our motors comply with UK regulations and meet the required health, safety, and environmental protection standards for products sold in Great Britain (England, Scotland, and Wales). For details, visit our compliance website here.
This mark signifies that our motors comply with CE requirements, confirming they meet essential health, safety, and environmental protection standards for products sold within the European Economic Area (EEA). For more information, visit our compliance website here.
Plenum spaces circulate air in buildings, often for HVAC systems. “Plenum-rated” materials limit smoke and toxic fumes in a fire, helping prevent their spread through the building. Visit compliance website here.
This mark indicates that our motors have been tested and meets safety standards in the United States (UR). Visit compliance website here.
Unique features
ENGINEERED FOR INDUSTRIAL USE
The MegaBlue pump by BlueDiamond is the most robust and powerful unit in our range, specifically engineered for the most demanding applications. Utilising our advanced Rotary Diaphragm Technology, the MegaBlue is ideal for multiple HVAC system installations across warehouses, and large commercial spaces. It delivers exceptional performance and reliability, efficiently removing large volumes of condensate at a faster rate than our other pumps.
FLEXIBLE SENSING OPTIONS
The MegaBlue® offers a variety of smart sensing options to suit different HVAC applications:
Reservoir Sensor (X87-813 / 835 for USA): Uses advanced thermistor technology, eliminating the common failures of traditional float switches. Compact, silent, and maintenance-free, it reliably detects condensate even in demanding environments.
DrainStik™ Sensor (X87-820): An ultra-compact, in-line sensor designed for direct installation in the drainpipe, offering precise condensate detection without interfering with drainage flow.
Temperature Sensor (X87-814): Triggers the pump when a 5°C difference is detected between the air inlet and outlet, enabling immediate, uninterrupted condensate removal.

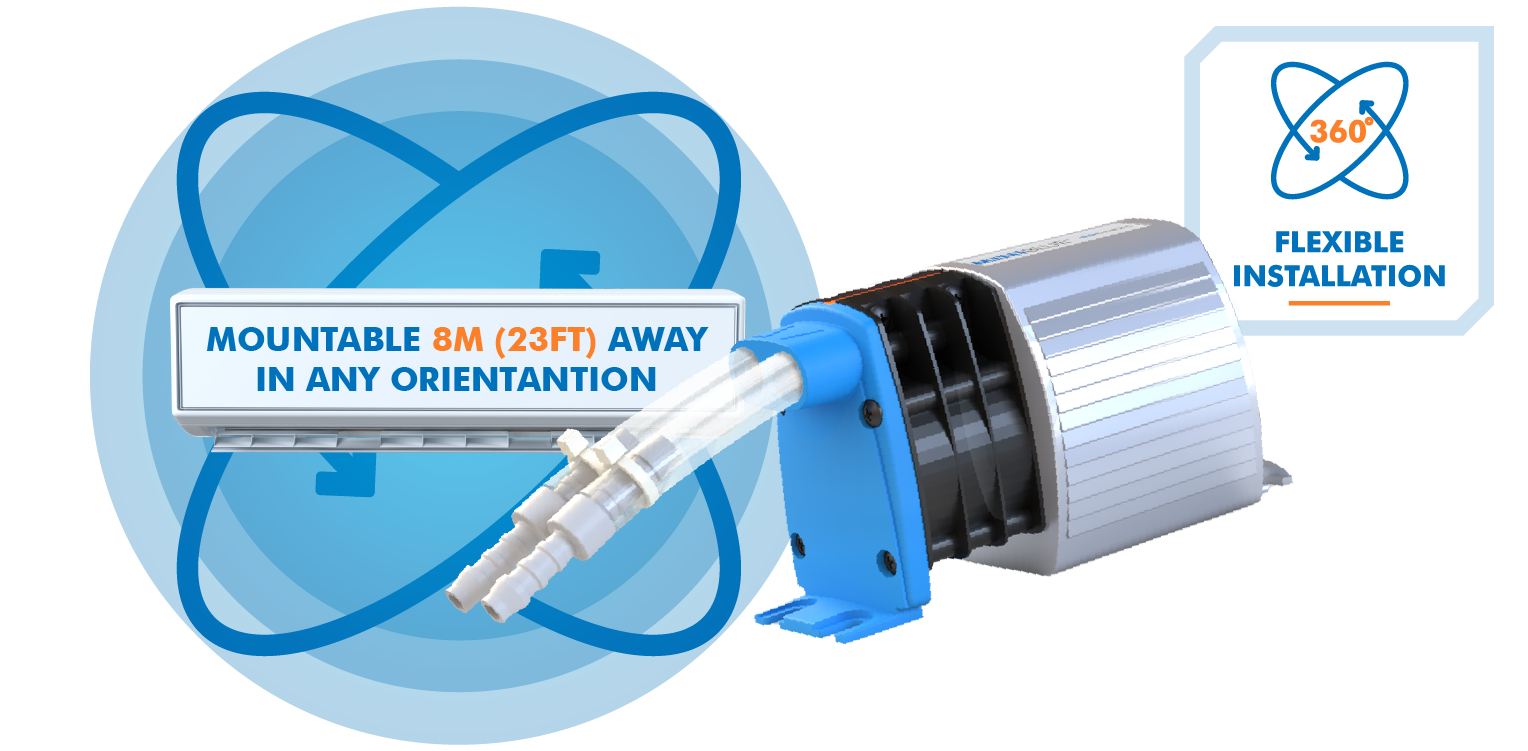

FLEXIBLE INSTALLATION
The MegaBlue pump offers flexible installation with the ability to be mounted in any orientation without affecting performance (8m/ 23ft away from the unit). Its forward facing spouts and versatile mounting options allow for seamless integration into tight spaces or unconventional setups, ensuring reliable operation across a wide range of HVAC applications.
TRUSTED RELIABILITY
The MegaBlue® was the first in its class to come with a market leading 3-year warranty—proof of the confidence we have in its patented, ultra-reliable pumping technology.
Every MegaBlue pump is precision-engineered and rigorously tested at our state of the art manufacturing facility meeting or exceed ISO9001 standards. From material selection to final inspection, quality is built into every step.
Rotary DIAPHRAGM Technology EXPLAINED
VALVELESS TECHNOLOGY
