V2 SERIES

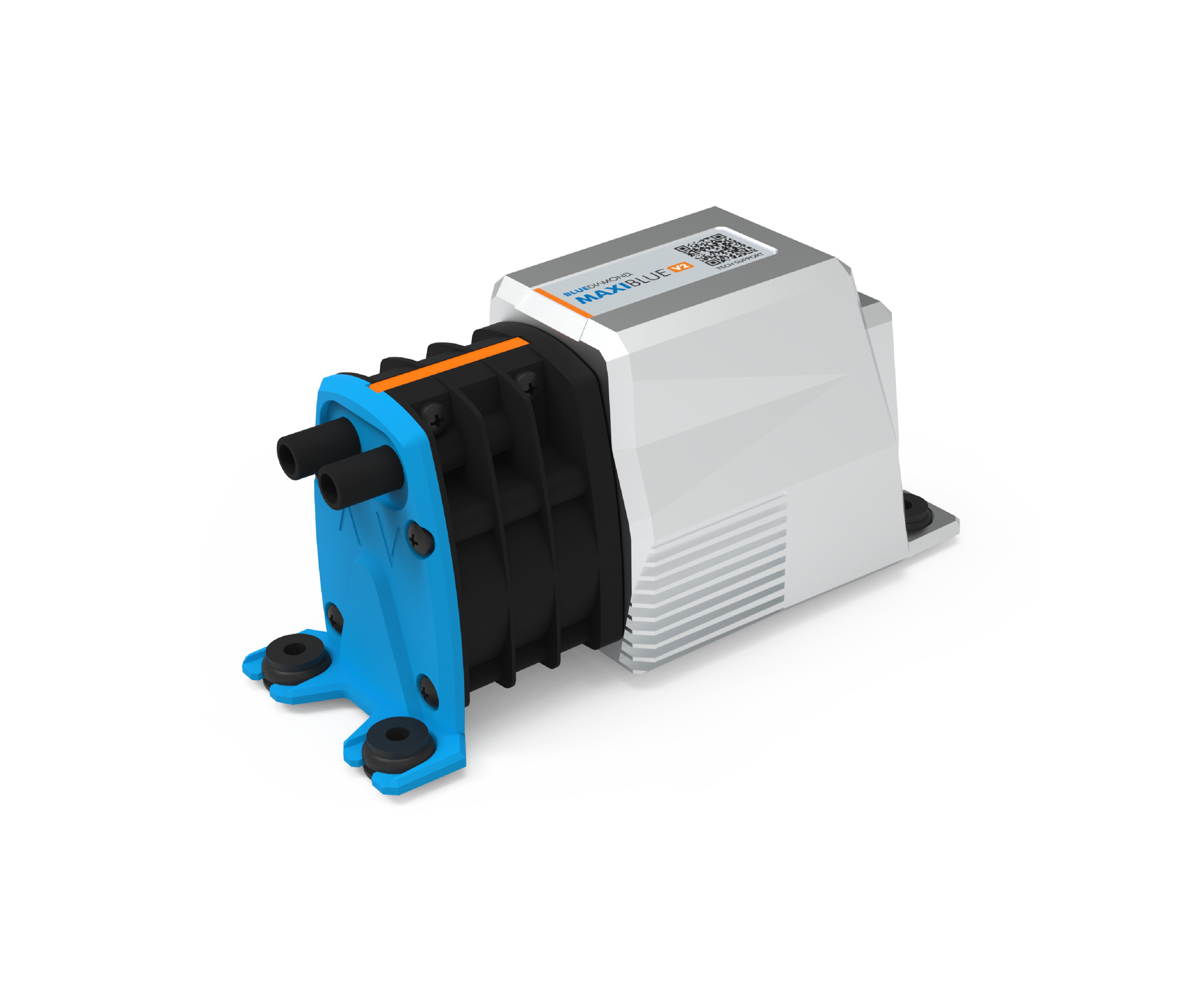

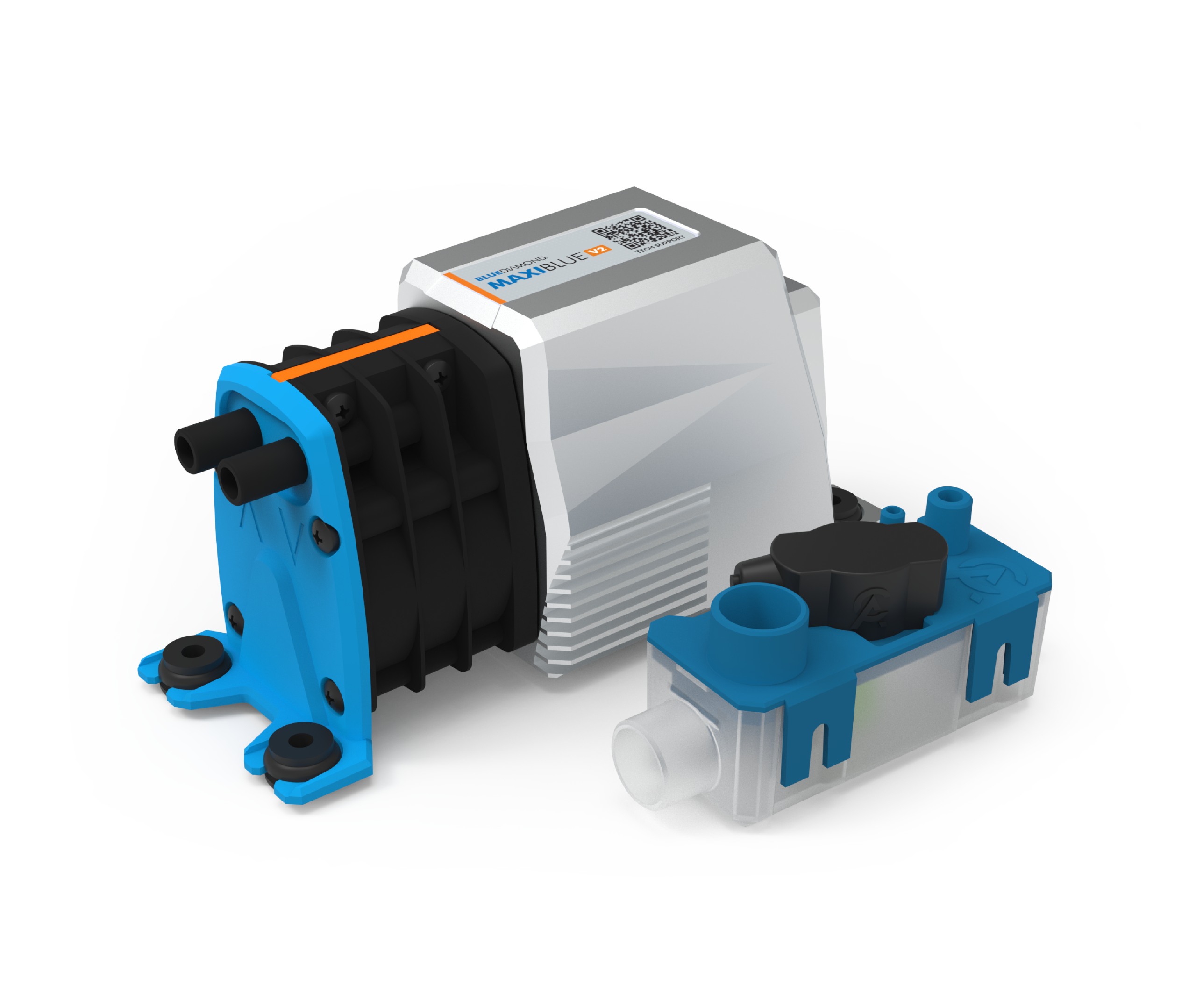

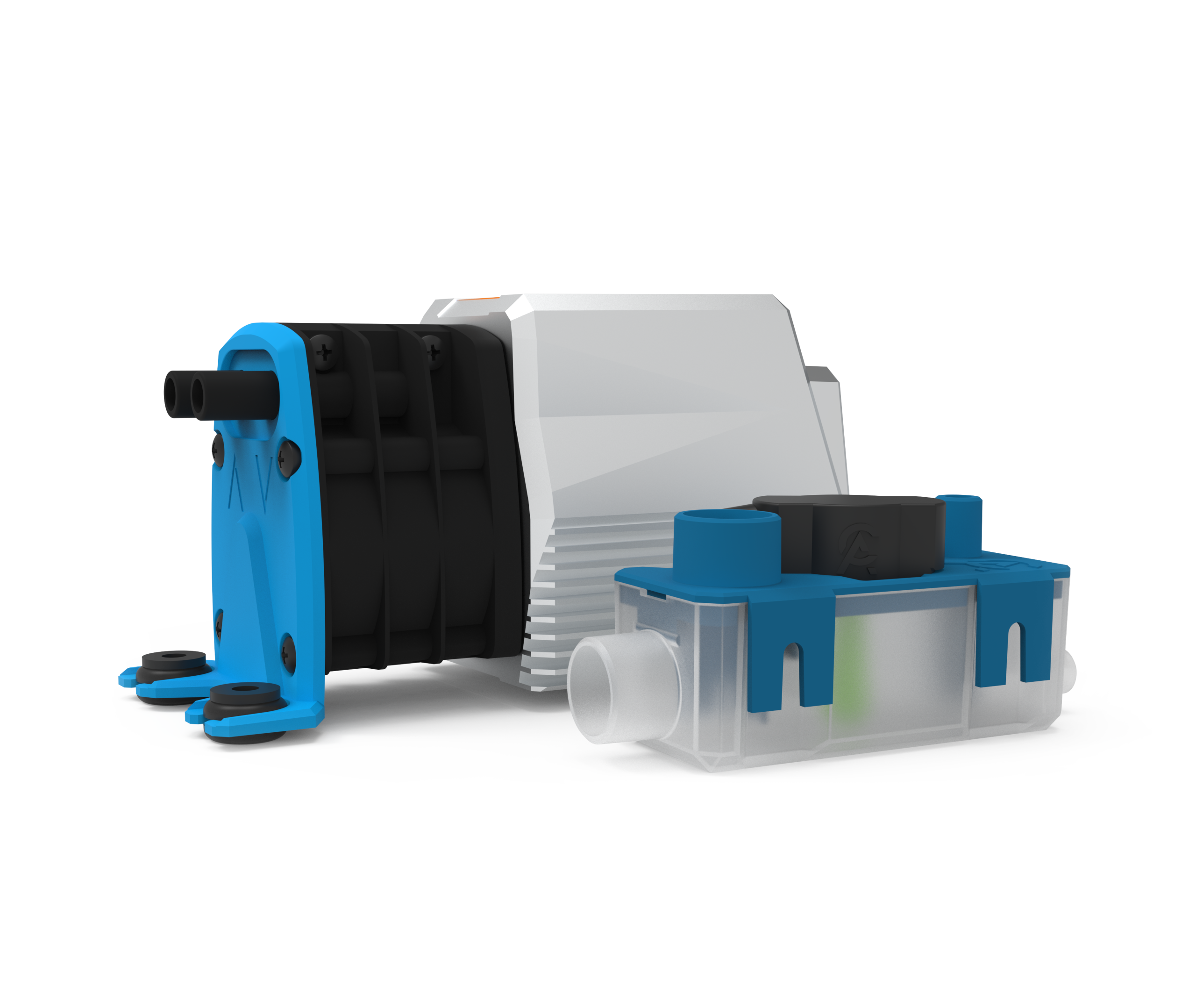

MaxiBlue® V2
Performance and reliability with built-in V2 intelligence
Ensuring efficient, dependable operation day after day across a wide range of applications, backed by the trusted durability of the BlueDiamond® V2 Series and 3 year warranty.
Pump Overview
- OrbiFlo® technology
- Dual voltage: 115-230v – 50/60Hz
- Alarm: Volt free, audio and LED

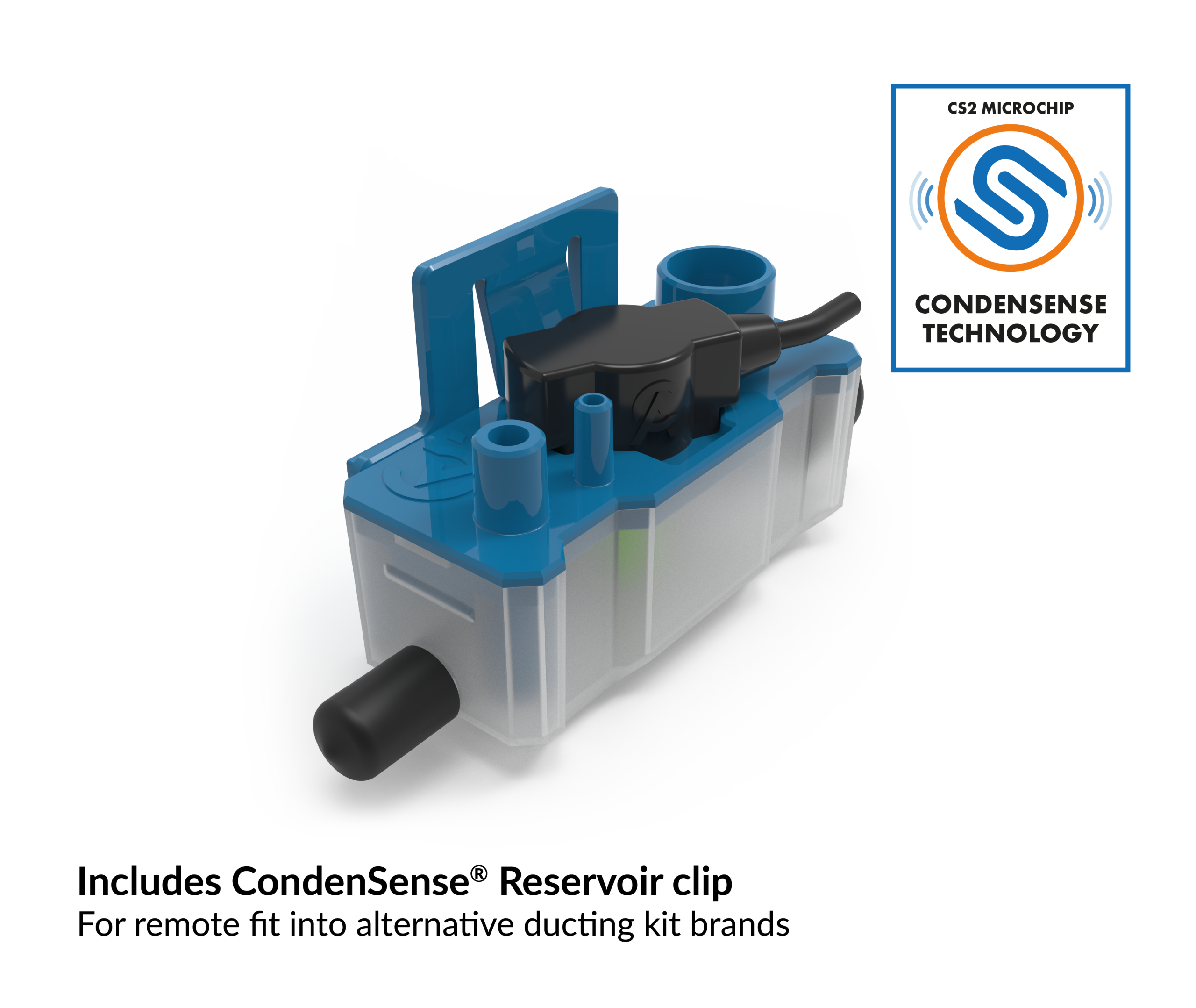

- Comes with CondenSense® reservoir sensor – X88-721
- Use for mini-split and cassette system
- Mid-rangedomestic and commercial spaces.
- Download datasheet here
MaxiBlue V2 Delivers
- Automatic self priming and run dry tolerance.

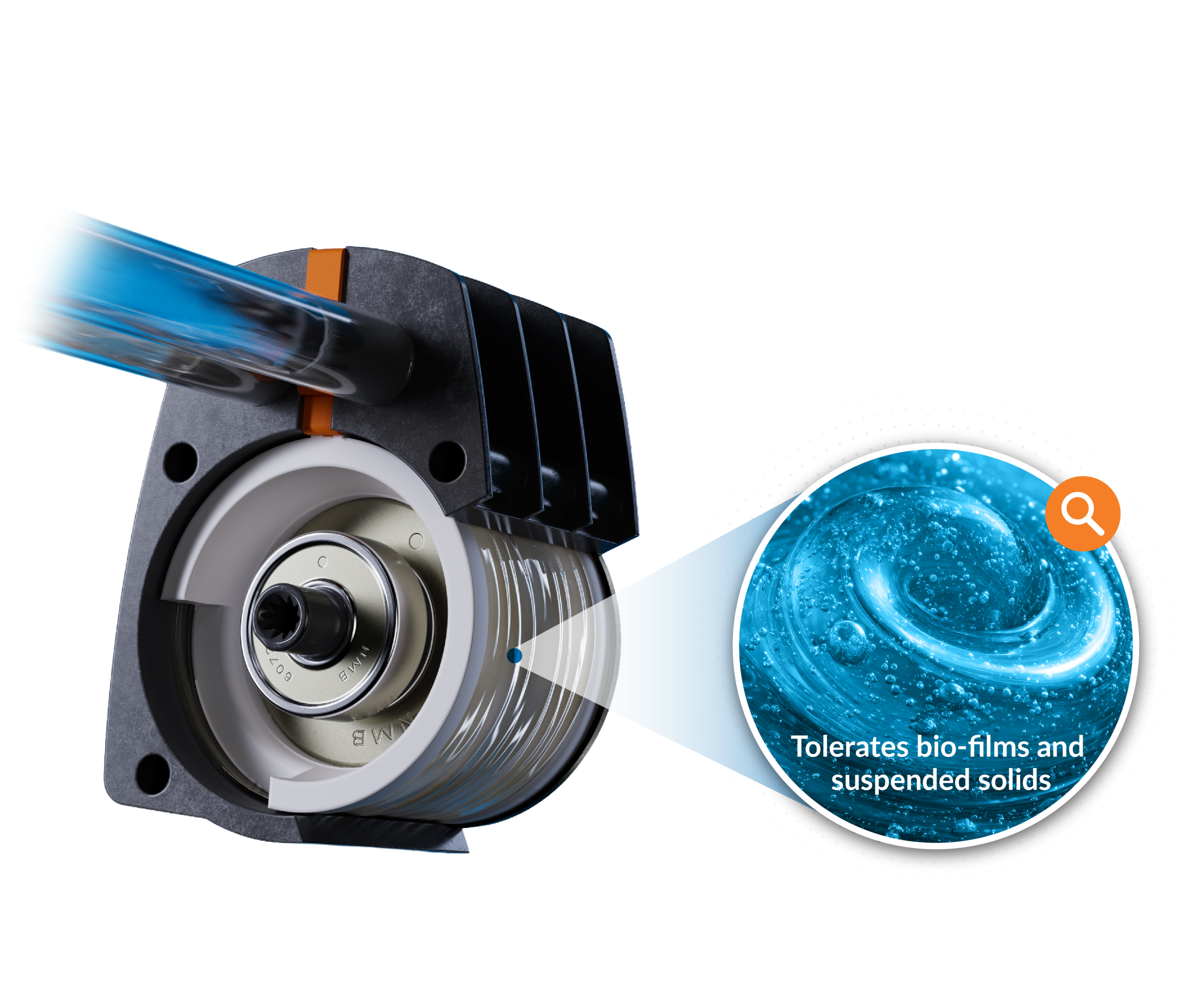

- Refined OrbiFlo® technology to prevent bio-film build-up.
- CondenSense® integration for intelligent, automatic flow adjustment.
- Records regular condensate levels for future removal cycles.
- Soft start sequencing ensures smooth, quiet system activation.
Performance
Max Flow:
14 L/Hour
Max Head:
8 Metres
Max Lift:
8 Metres
Volume level (Low flow):
19 dB(A)
Volume level (High level):
21 dB(A)
Alarm Type:
Volt free, Audio & LED
Unit size
Max A/C KW:
14 KW
Consumption (Rated)
Voltage:
115-230V
Frequency:
50/60Hz
Draw (A):
0.03 (115V), 0.06 (240V)
Power (W):
5.5W
Power (VA):
5.7VA
Power Factor:
0.96
IP Rating:
IPX4
Product sizing (L x W x H)
Dimensions:
148 x 57 x 74mm
Weight:
640g
Inlet:
8mm Straight
Outlet:
8mm Straight
Alarm lead and power cable:
2 Metres
Reservoir:
92 x 32 x 38mm
Reservoir lead length:
40cm
+ Extension lead (in box):
2 Metres (2.4m Total)
Performance
Max Flow:
3.7 G/Hour
Max Head:
26 Feet
Max Lift:
26 Feet
Volume level (Low flow):
19 dB(A)
Volume level (High flow):
21 dB(A)
Alarm Type:
Volt free, Audio & LED
Unit size
Max A/C BTU:
48,000 BTU
Consumption (Rated)
Voltage:
115-230V
Frequency:
50/60Hz
Draw (A):
0.13 (115V), 0.06 (230V)
Power (W):
5.5W
Power (VA):
5.7VA
Power Factor:
0.96
IP Rating:
IPX4
Sizing (L x W x H)
Dimensions:
5.8 x 2.2 x 2.9 Inches
Weight:
22.5 oz
Inlet:
1/4 Inch Straight
Outlet:
1/4 Inch Straight
Alarm Lead and power cable:
6.5 Feet
Reservoir:
4.0 x 1.2 x 1.5 Inches
Reservoir lead length:
16.0 Inch
+ Extension lead (in box):
6.5ft (7.8ft total)
Tested performance
The graph presents flow, head, and lift performance for the MaxiBlue V2 operating conditions, showing how each parameter which may vary depending on conditions and thickness of liquid.
Regularly trusted by engineers worldwide, the Maxiblue V2 has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.
All pumps must be installed by a qualified engineer/ HVACR Technician
Tested performance
The graph presents flow, head, and lift performance for the MaxiBlue V2 operating conditions, showing how each parameter which may vary depending on conditions and thickness of liquid.
Regularly trusted by engineers worldwide, the Maxiblue V2 has earned a reputation for durability and reliability, significantly reducing the need for call-outs and regular maintenance.
All pumps must be installed by a qualified engineer/ HVACR Technician
Discharge Pipe
Vertical (V):
Horizontal (H):
8 Metres
0 Metres
7 Metres
3 Metres
6 Metres
6 Metres
5 Metres
9 Metres
4 Metres
12 Metres
3 Metres
15 Metres
2 Metres
18 Metres
1 Metres
21 Metres
Unit Size
Max KW Unit:
14KW
Unit Type:
Mini split
Note: The MaxiBlue V2’s maximum head (8m) is NOT reduced or effected by suction lift (8m). Once installed, suction lift and discharge head should be considered independently. Ideal for small air conditioning units.
For each metre not used on vertical head you can run 3m on the horizontal.
- A heavy load on the pump will reduce the flow rate over greater distances.
- Performance is for guide only. It is the ultimate responsibility of the end user to ensure pump is fit for purpose.
Discharge Pipe
Vertical (V):
Horizontal (H):
25 Feet
0 Feet
22 Feet
9 Feet
20 Feet
20 Feet
16 Feet
30 Feet
13 Feet
40 Feet
9 Feet
50 Feet
6 Feet
60 Feet
3 Feet
70 Feet
Unit Size
Max KW Unit:
48,000 BTU
Unit Type:
Mini split
Note: The MiniBlue V2’s maximum head (25FT) is NOT reduced or effected by suction lift (25FT). Once installed, suction lift and discharge head should be considered independently. Ideal for small air conditioning units.
For each metre not used on vertical head you can run 10FT on the horizontal.
- A heavy load on the pump will reduce the flow rate over greater distances.
- Performance is for guide only. It is the ultimate responsibility of the end user to ensure pump is fit for purpose.
