Intelligent condensate detection for HVAC SYSTEM PERFORMANCE and maximised pump efficiency
The new CondenSense™ reservoir features precise CondenSense technology – perfect for detecting changes in condensate produced by HAVC systems. The highly accurate CondenSense technology ensures the pump operates only when needed, enhancing system performance and reducing energy waste. Its compact and durable design is compatible with any ducting kit on the market, and, when used with our newly designed reservoir clip, enables discreet and seamless installations
Key Features
• Reduces costs and cuts energy waste
• Can be mounted in any ducting kit using our reservoir clip.
• Self-priming activation, no need for siphoning devices
• Unique CondenSense™ Technology
• Plug and play set-up for quick installation
• Small, compact and lightweight
Application
• Mini-Split systems up to 3.5KW
• Ideal for bedrooms
• Small offices
• Libraries
• Areas where sound suppression is a priority
PurchaseD With
Technology
Type:
CondenSense™
Compatability
Pump:
MicroBlue only
Connection:
Aux cable
Sizing
Dimensions:
102 x 31 x 38mm
Tank Capacity:
40ml
Inlet:
15mm OD
Outlet:
8mm OD
Lead Length:
2 Metre
Technology
Type:
CondenSense™
Compatability
Pump:
MicroBlue only
Connection:
Aux cable
Sizing
Dimensions:
4.0 x 1.22 x 1.5 Inches
Tank Capacity:
1.35 fl oz
Inlet:
0.59" OD
Outlet:
0.31"OD
Lead Length:
6.5 Feet
| Purchasing option | Part No. | Available in |
|---|---|---|
| CONDENSENSE™ RESERVOIR (Microblue compatible) | C21-001 |  UK, EU, ROW |
| Pump purchase options | Part No. | Available in |
|---|---|---|
| MicroBLUE® + RESERVOIR (HLA) | X86-001 | UK, EU, ROW |
| MicroBLUE® + RESERVOIR (FSA) | X86-002 | UK, EU, ROW |
| MicroBLUE® + RESERVOIR (HLA) | X86-003 |  Americas |
| MicroBLUE® + Slim Fascia KIT & Reservoir | X86-011 | Americas |
| MicroBLUE® + Ducting Kit (Ivory) & Reservoir | X86-507 | UK, EU, ROW |
| MicroBLUE® + Ducting Kit (White) & Reservoir | X86-508 | UK, EU, ROW |
Alarm differences
FSA– Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
HLA– High Level Audio is an integral audio and visual alarm. When the condensate is at a critical point with-in the reservoir, the diagnostic light in the pump will switch from green and will start to flash red with a 2 beep warning every minute. The pump will continue to operate while in alarm mode.
Unique features

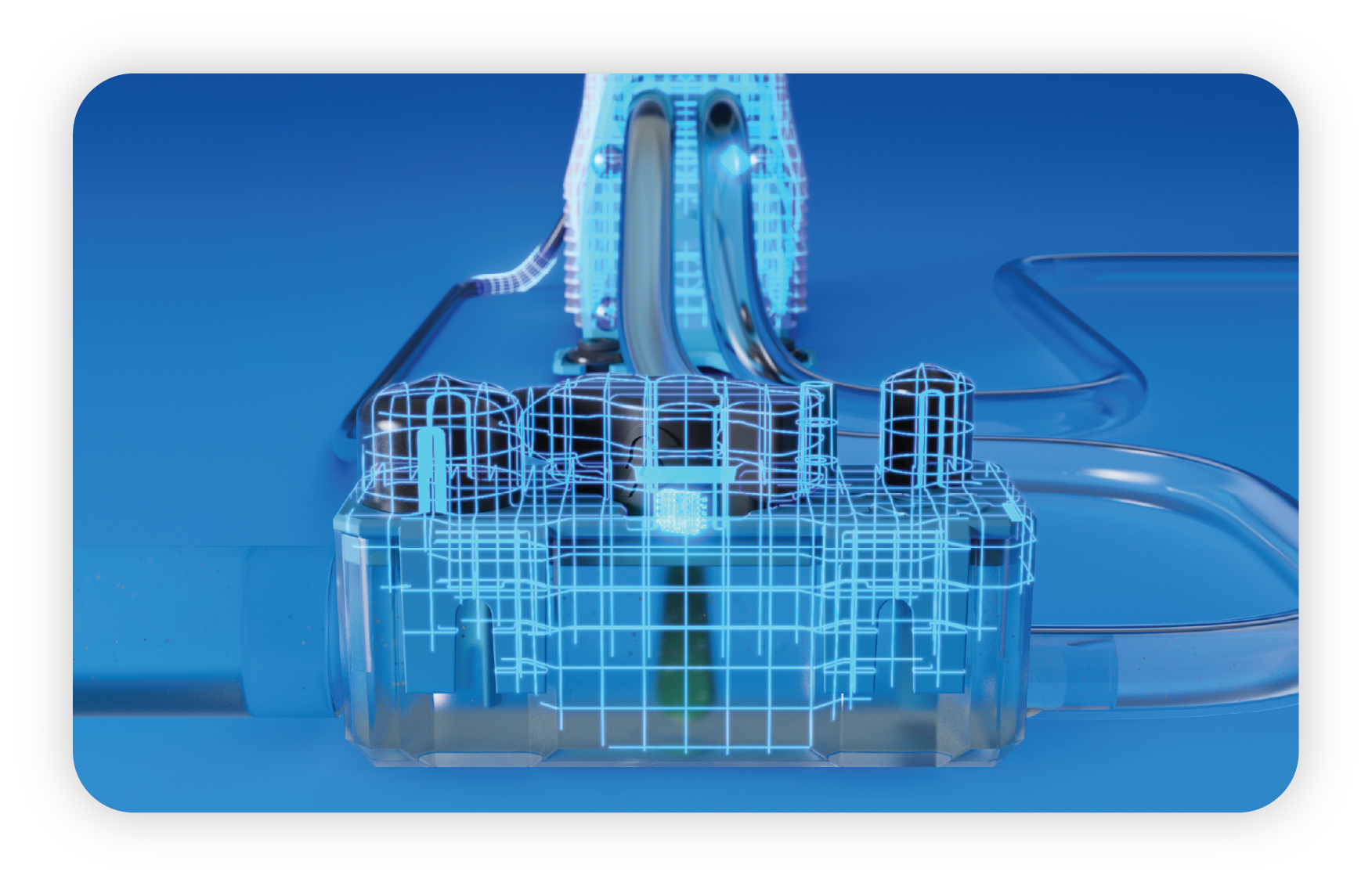

CONDENSENSE™ TECHNOLOGY
No more stuck float switches and regular reservoir maintenance. Our brand new capacitive sensing is a technology detects changes in capacitance to sense the presence within the reservoir. It works by measuring the electrical charge between a sensor and condensate produced by the air conditioning unit. This new sensing technology offers higher sensitivity, durability and reliability in comparison to regular float switches and thermistors.
ADAPTIVE EFFICIENCY
Designed to manage variable condensate outputs with unmatched efficiency. The MicroBlue®’s Adaptive Efficiency, is powered by its advanced soft start technology and variable speed control. This allows the pump to adjust seamlessly to fluctuating condensate levels, ensuring optimal performance without unnecessary energy consumption. By reducing sudden surges in operation and running only as needed, the MicroBlue® not only extends its lifespan but also promotes energy efficiency.

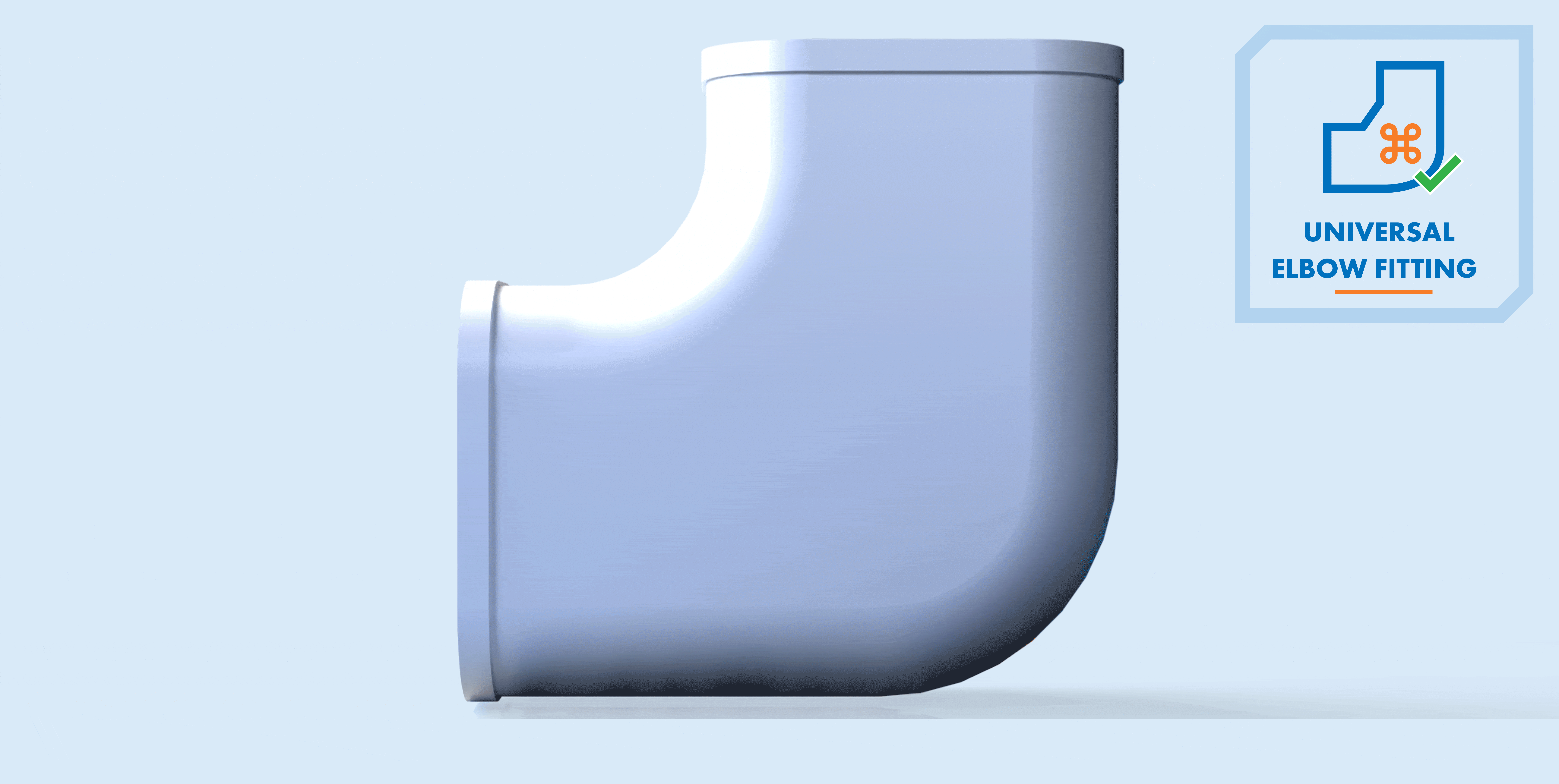

NEW UNIVERSAL RESERVOIR CLIP
The reservoir clip is a durable plastic component featuring a strong adhesive backing, designed to simplify the installation of condensate removal systems. Engineered to be universally compatible with most ducting kits, it securely fits into the elbow of many ducting kit brands, making it ideal for retrofitting into pre-existing setups. Its quick-stick application significantly reduces installation time, while its robust hold ensures the reservoir remains secure and level. This innovative clip provides a practical, time-saving solution for engineers looking to streamline maintenance or upgrade to BlueDiamond’s CondenSense technology.

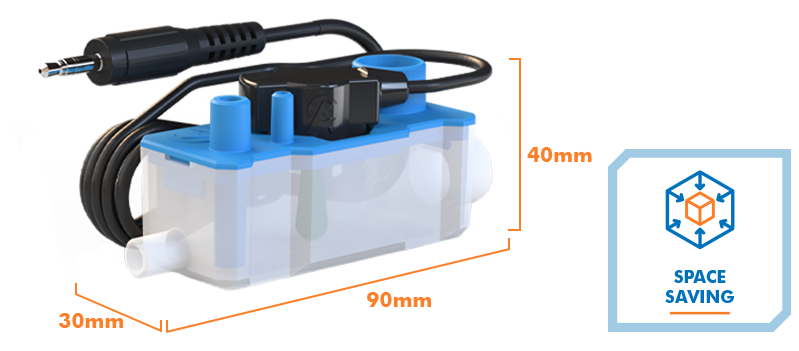

SPACE SAVING DESIGN
The MicroBlue Reservoir is our most compact and advanced condensate collection system, manufactured specifically for the MicroBlue pump. It’s compact design means it can fit seamlessly into our Ducting Kit or Slim Fascia Kit, ensuring efficient condensate management with minimal footprint.
Related Products
| Max Flow: | 3.7 G/HOUR (14 L/MIN) |
| Max Head: | 8 M (23 FT) |
| Max Lift: | 8 M (16.5FT) |
| Noise: | 21 dB(A) |
| Unit: | 8.0 – 14 KW (48000 BTU) |
AVAILABLE IN: UK, EU & USA
RESERVOIR CLIP
| Compatibility: | MicroBlue Reservoir |
| Sensor fits: | MicroBlue Reservoir |
| Dimension: | 60 x 50 x 2mm (2.3 x 1.96 x 0.08″) |
| Ideal for: | Retro-fitting reservoir to any ducting elbow or flat wall surface |
Available in UK, EU & USA
MAXIBLUE RESERVOIR
| Compatibility: | MaxiBlue |
| Sensor type: | Thermistor Sensing |
| Dimension: | 90 x 40 x 30mm (3.5 x 1.5 x 1.2″) |
| Cable Length: | 2m (6.5 Feet) |
Available in UK, EU & USA
